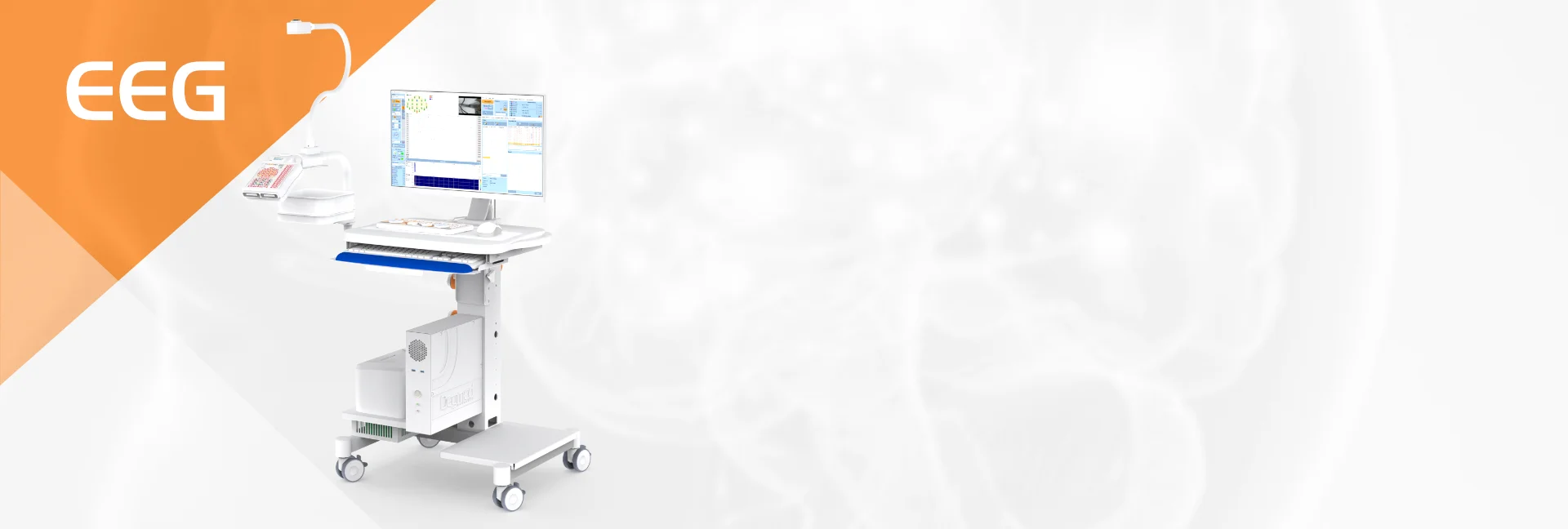

TruScan EEG
EEG / SYSTEM
Technically advanced EEG system for demanding clinical and research use.
Key Highlights
- Compact headbox with wireless and ambulatory options
- Battery operation / Direct Power mode
- Intuitive dashboard-style interface
- Always on Impedance indications
System Overview
The TruScan EEG system offers state-of-the-art functionality for both clinical and research applications. Its compact headbox amplifiers are fully battery-operated, ensuring flexibility in various settings. The system is versatile and suitable for ambulatory, workstation, or wireless use. When mounted on a cart, the headbox can be easily detached for wireless operation, allowing it to be placed next to the patient. The user interface is intuitive and easy to learn, featuring dashboard-style controls. Additionally, the system supports network connectivity, including HL7 integration, and allows for remote streaming of EEG and video data across the network.
TruScan EEG HeadboxDEYMED Technological Advantages
Battery Operated
DEYMED systems deliver the highest possible signal quality by operating entirely on battery power, significantly reducing artefacts and external noise. For added flexibility, the systems can also be powered directly from the mains, allowing for seamless operation on both battery and Direct Power.
Wireless Use
In wireless mode, the amplifier can record for up to 30 hours on a single charge. Wireless range up to 100 metres from the base system for maximum patient comfort and freedom to move.
Intelligent Charging
DEYMED's new ultra-low capacitance induction charging keeps the batteries charged while the headbox is connected to the system. This feature ensures optimal signal quality during sensitive neurophysiology tests, allowing for full battery operation when needed.
Optical Isolation
Optical isolation greatly improves signal quality and patient safety. This feature, combined with long-lasting battery operation, offers the best-in-class technology for neurophysiological recordings.
Click N' Go System
Easily detach your system from the cart with a single click and be on the go with a laptop. You are no longer forced to choose between a cart or a portable system. You can now have both in one.
Always On Impedance
Always on impedance monitoring displays impedances during recording and has alerts to ensure electrodes are in range at all times. The values are saved to the EEG file for post-quality-assurance review.
System Features
- Fully battery operated with Intelligent Charging for superior signal quality
- Intuitive dashboard-style interface
- Fully functional EEG Explorer Keyboard for ease of use
- Fully searchable patient database
- User accounts and access privileges
- GDT, HL7 and network capabilities options
- Custom DEYMED FlexiCart with an integrated silent computer
- Instant portability with the Click N' Go feature
- Wireless connection for greater convenience
- Customisable summary reports for all tests
- ICU configuration available
Software

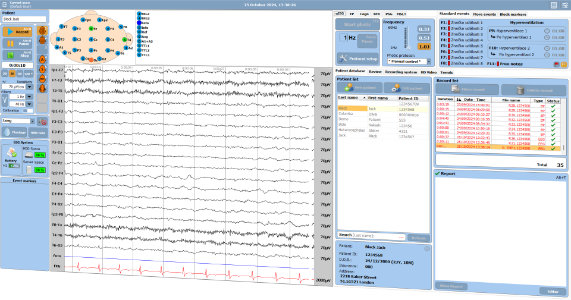

TruScan EEG Acquisition
- Intuitive dashboard-interface
- Pre-set text markers for quick insertion
- On-screen always-on impedance monitor
- Visual drag and drop custom montage creation

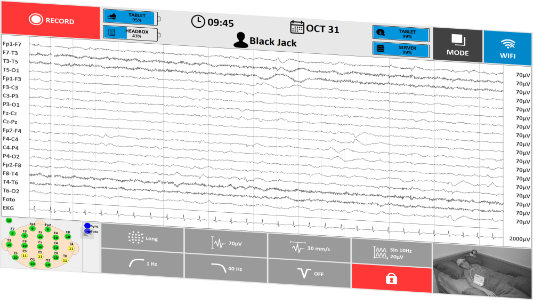

TruScan EEG Acquisition in ICU Mode
- Easy to use
- Designed for a touchscreen interface
- Video or impedance preview during recording
- Landscape or portrait mode

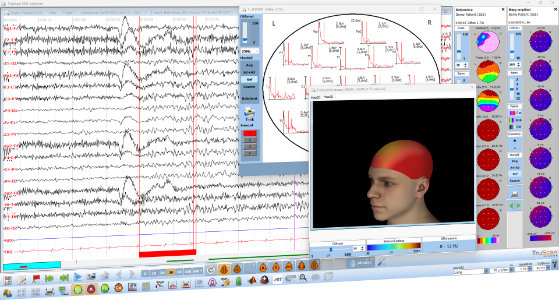

TruScan EEG Explorer
- Interpretation editor with custom text pre-sets
- Common controls via EEG Explorer Keyboard
- Database with uninterpreted To-Do List
- Full search and sortable patient list
- Export EEG with included viewer to flash drive

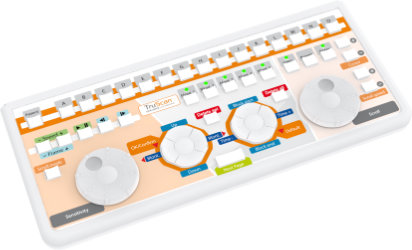

EEG Explorer Keyboard
The TruScan Explorer Keyboard is a simple important innovation for routine EEG review. It significantly enhances the speed and comfort of browsing long-term EEG recordings with video by reducing the need for excessive mouse use. The dedicated keyboard provides all standard EEG review controls, including sensitivity adjustments, montage changes, and nearly all on-screen settings at the touch of a button. Quick-text annotation shortcuts and reporting controls are also integrated for added convenience.
Product Details
PTZ Network Cameras
Video can be streamed over the network to any review station or accessed via a UDP viewer, supporting up to four video channels on a single screen. The wide-angle camera provides an optimal view of the patient, with adjustable focus and zoom for enhanced clarity. Automatic signal synchronization ensures precise timing for accurate monitoring. For flexible installation, the camera can be mounted on a wall or placed on a cart, making it adaptable to various clinical environments and needs.
- Camera focus and zoom control directly from the software
- Night vision capability
DEYMED Integration
The TruScan EEG system can be integrated with other DEYMED systems.
TruTrace EMG
The TruTrace EMG integrated solution allows users to operate with just one FlexiCart or computer, saving money and space in the examination room. The systems also share a common patient database for easy access and management.

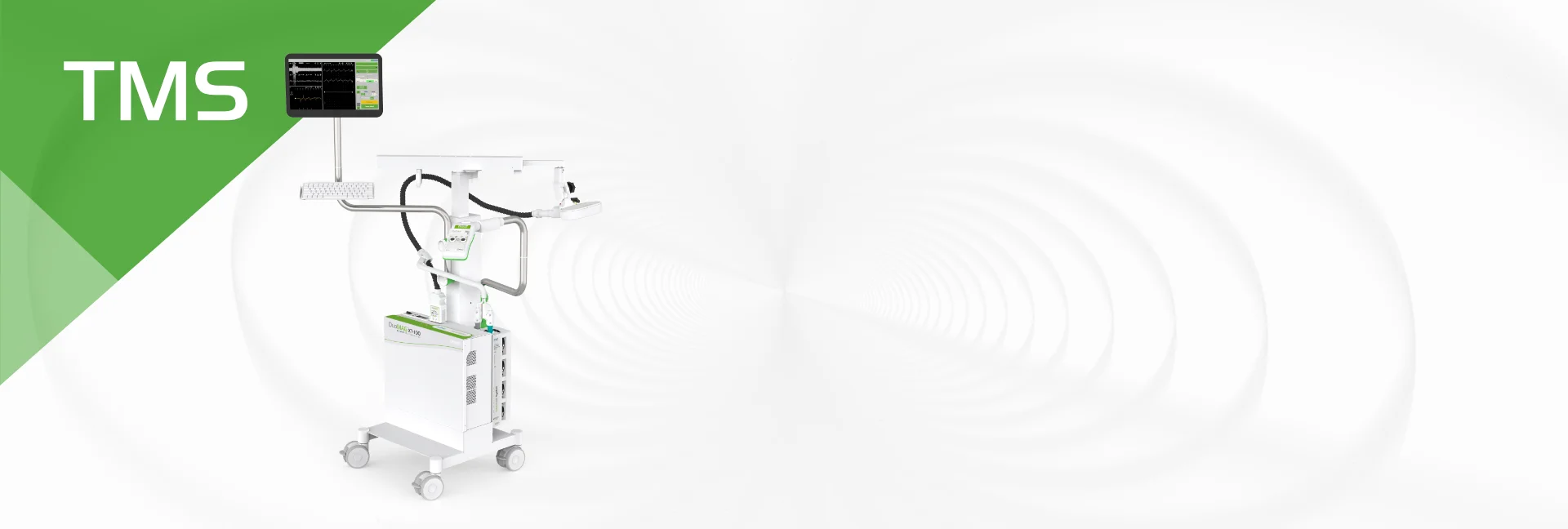

Learn MoreDuoMAG TMS
The DuoMAG XT / XTR, MP and MP-Dual systems can be controlled directly from the TruScan EEG Acquisition, making examinations much easier.
Learn More
Configurations

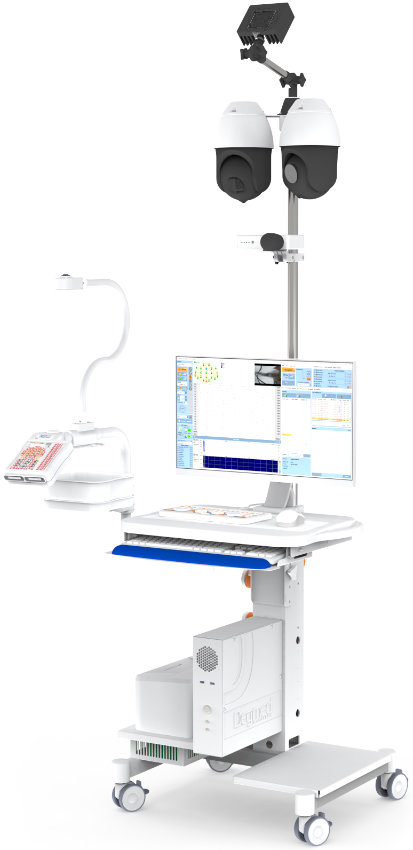

FlexiCart
The FlexiCart comes with an integrated computer and offers the ability to mount FlexiArm, a photic stimulation lamp, headbox extender, and video monitoring system. Alternatively, it can be configured with the FlexiTrolley, which can hold headboxes, a photic stimulation lamp, or a video monitoring system.
Headbox options: LT, RS, LT Plus, RS Plus, RE Plus
ICU Cart
The ICU cart is available in tablet, NeuroTablet, or PC configurations, making it ready for use in intensive care units. It offers greater flexibility and is easier to manoeuvre compared to standard FlexiCarts.
Headbox options: LT, RS, LT Plus, RS Plus, RE Plus
Portable
This solution is ideal for EEG systems that require easy transport between locations. It features a USB adapter and a headbox connector, and can be configured with the FlexiTrolley for added convenience and mobility.
Headbox options: LT, RS, LT Plus, RS Plus, RE Plus
NeuroTablet
NeuroTablet is the best solution for systems that need to be quickly transported.
Accessories
We supply a range of accessories for our systems. Download the DEYMED Accessories catalogue in PDF format. Contact us if you are interested in any listed accessories.
Headbox Options
TruScan EEG LT Plus

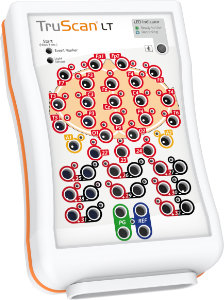

Channel options: 32, 72, 144, 288The TruScan EEG LT Plus is a high-end headbox specifically designed for routine clinical use. It delivers significantly better performance than the TruScan LT, particularly in sample rates, frequency range, bandwidth, and measurement accuracy. It features impedance LED indicators that provide convenient real-time feedback directly from the headbox. The system can also operate wirelessly for added convenience, with a battery life of up to 35 hours on a single charge. In non-wireless mode, it can run for up to 50 hours on one charge. The wireless range is up to 100 metres, extendable up to 300 metres. If the patient moves out of wireless range, the TruScan LT Plus continues recording to its internal memory and automatically syncs the backup data once the patient returns to wireless coverage.
TruScan EEG LT PlusTruScan EEG RS Plus
Channel options: 64The TruScan EEG RS Plus is a high-end headbox specifically designed for routine Holter EEG use. It delivers significantly better performance than the TruScan RS, particularly in sample rates, frequency range, bandwidth, and measurement accuracy. It features impedance LED indicators that provide convenient real-time feedback directly from the headbox. The system can also operate wirelessly for added convenience, with a battery life of up to 35 hours on a single charge. In non-wireless mode, it can run for up to 50 hours on one charge. The wireless range is up to 100 metres, extendable up to 300 metres. If the patient moves out of wireless range, the TruScan RS Plus continues recording to its internal memory and automatically syncs the backup data once the patient returns to wireless coverage.
TruScan EEG RS PlusTruScan EEG RE Plus

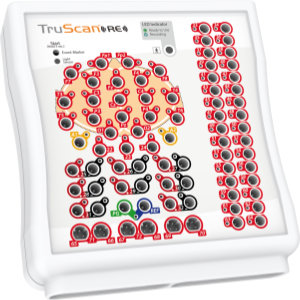

Channel options: 32, 72, 144, 288The TruScan EEG RE Plus is a high-end headbox specifically designed for research EEG purposes. It is compatible with TMS systems, enabling measurements to be taken immediately after TMS pulses without damaging the amplifier. The headbox features impedance LED indicators that provide real-time feedback, improving ease of use. The system can operate wirelessly for added convenience, with a battery life of up to 35 hours on a single charge. In non-wireless mode, it can run for up to 50 hours on one charge. The wireless range is up to 100 metres, extendable up to 300 metres. If the patient moves out of wireless range, the TruScan RE Plus continues recording to its internal memory and automatically syncs the backup data once the patient returns to wireless coverage. This headbox is designed to meet the highest standards for research applications.
TruScan EEG RE PlusTruScan EEG LT

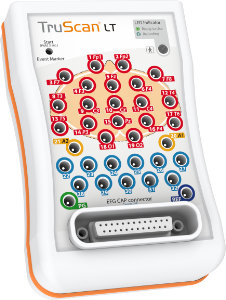

Channel options: 24, 32TruScan EEG LT is DEYMED's gold standard for routine clinical use. The Canon connector simplifies studies with a single plug that connects the entire EEG cap. It also offers touch-proof connectors. The system can optionally operate wirelessly for added convenience, with a battery life of up to 34 hours on a single charge. When not using the wireless mode, it can function up to 60 hours on one charge. The wireless range up to 100 metres, extendable up to 300 metres. If a patient moves out of wireless range, the TruScan LT continues recording to its internal memory and automatically syncs the backup data once the patient returns to wireless coverage.
TruScan EEG LTTruScan EEG RS

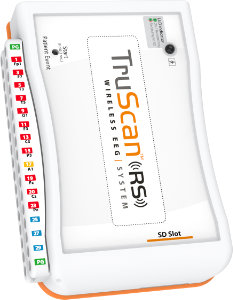

Channel options: 32The TruScan EEG RS is DEYMED's gold standard for Holter EEG, specifically designed for this application. It includes wireless communication, with touch-proof connectors conveniently placed on the side of the device for easier handling during Holter EEG procedures. In wireless mode, the TruScan RS can record for up to 45 hours on a single charge. It has a wireless range up to 100 metres from the base system, extendable up to 300 metres with additional signal extenders. If the patient moves out of wireless range, the TruScan RS will continue recording to its internal memory and automatically re-sync the backup data when the patient returns to wireless coverage.
TruScan EEG RSHardware Add-ons
Photic Stimulator
Programmable with sets and frequencies up to 60 Hz, white/red light.
EEG Explorer Keyboard
Multifunctional, user-programmable EEG keyboard.
VEP Monitor
Low-latency response VEP monitor.
FlexiTrolley
A stand-alone trolley with options for a headbox arm, VEP monitor, or video monitor setup.
Holder for Electrodes
An electrode holder that can be attached to the arm.
Accessory Basket for Cart
A basket that can be attached to the headbox arm.
Basic Camera
A basic camera that can be mounted on any cart, FlexiTrolley, or on a wall.
PTZ Cameras with Infra Lamp
Single (dual - optional) camera. Can be mounted on any cart, FlexiTrolley, or on a wall.
Printer
Black and white or colour printer.
Headbox Specification
| Product Specification | TruScan LT | TruScan RS | TruScan LT Plus | TruScan RS Plus | TruScan RE Plus |
|---|---|---|---|---|---|
| Number of EEG Channels per Headbox | 24, 32 | 32 | 32, 72 2x72=144 4x72=288 | 64 2x64=128 4x64=256 | 32, 72 2x72=144 4x72=288 |
| Amplifier | AC | AC | DC | DC | DC |
| Sample Rate | Up to 6000 Hz | Up to 6000 Hz | Up to 16 000 Hz | Up to 16 000 Hz | Up to 16 000 Hz |
| Patient Marker | Yes | Yes | Yes | Yes | Yes |
| Light Sensor | No | No | Yes | Yes | Yes |
| 3-axis Accelerometer | No | No | Yes | Yes | Yes |
| LED Impedance Indication on Headbox | No | No | Yes | Yes | Yes |
| Holter Mode* | Optional | Included | Optional (Up to 72ch) | Included | Optional |
| Wireless | Optional | Included | Optional (Up to 72ch) | Included | Optional |
| Power Supply | Battery / Direct Power Mode | Battery / Direct Power Mode | Battery / Direct Power Mode | Battery / Direct Power Mode | Battery / Direct Power Mode |
| Recording Time with Battery Operation on Optical Cable ** | Up to 60 Hours or Unlimited | Up to 96 Hours or Unlimited | 32 ch: Up to 50 Hours or Unlimited 72 ch: Up to 30 Hours or Unlimited | 64 ch: Up to 45 Hours or Unlimited | 32 ch: Up to 50 Hours or Unlimited 72 ch: Up to 30 Hours or Unlimited |
| Recording Time in Wireless Operation ** | Up to 34 Hours or Unlimited | Up to 45 Hours or Unlimited | 32 ch: Up to 35 Hours or Unlimited 72 ch: Up to 25 Hours or Unlimited | 64 ch: Up to 35 Hours or Unlimited 32 ch: Up to 35 Hours or Unlimited 72 ch: Up to 25 Hours or Unlimited | |
| Connectors | Touch-proof + Canon25 | Touch-proof | 32ch: Touch-proof, Canon25 72ch: Touch-proof, Canon25, DEYMED 3 pin | Touch-proof | 32ch: Touch-proof, Canon25 72ch: Touch-proof, Canon25, DEYMED 3 pin |
| TMS Compatible | No | No | No | No | Yes |
* Only for single headbox.
** Due to a Direct Power mode or battery design, which allows battery swapping during use for uninterrupted long-term recordings.
Interested in the TruScan EEG?
Get in touch with SAS Medical Systems for detailed layouts, demonstrations, and pricing quotes tailored to your center.
Related Solutions

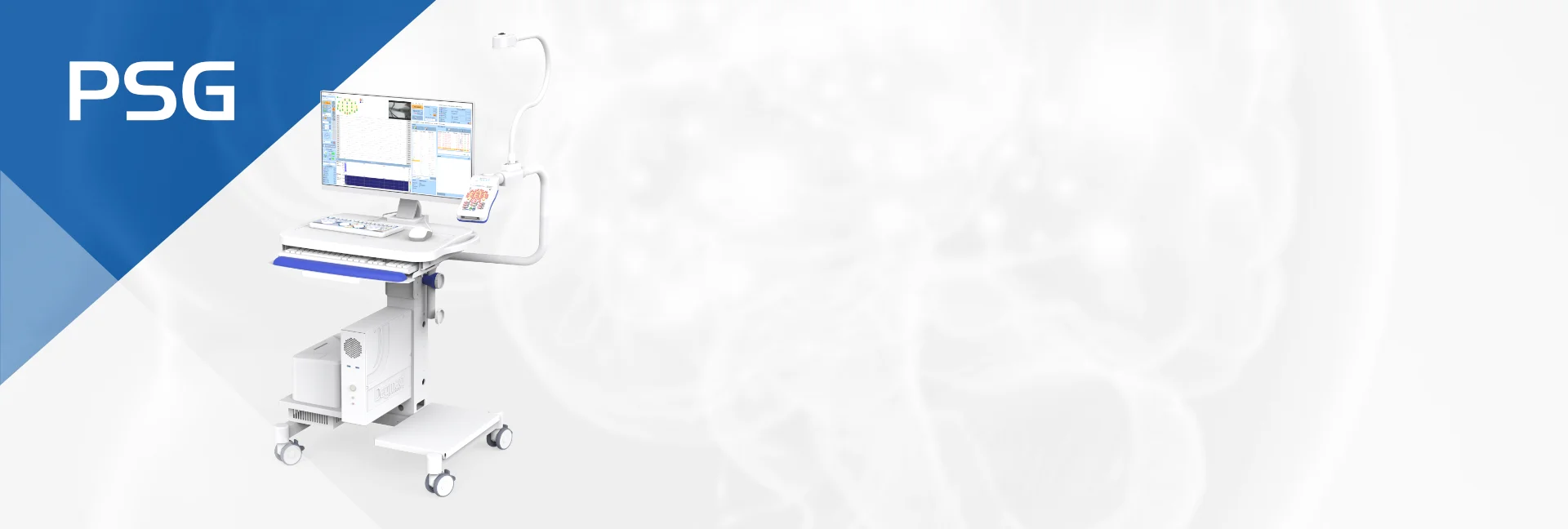

Deymed SomniPro PSG
